Managing the challenges of a public voting website

The Inked Link is a performance art project by Briony Godivala which features her getting a QR code tattoo and letting the public vote where it redirects to every day.

I was given free reign on the technical challenges of this:

• How to redirect the tattoo to a chosen website
• How to setup a voting website to do this programatically

and last but not least

• How to allow convenient voting from a browser while limiting spam

Redirection

The first point was easy. All one has to do is buy a domain, ensure auto-renew is on (!!) and then link up a website or back-end server to respond to the url on the QR tattoo.

In this case, to keep the QR as short (and therefore simple) as possible, we decided to link it to theinkedlink.com. This way once the project is over, it can host an archive of the project or simply redirect to a personal website.

The website or backend server responding to https://theinkedlink.com can then look up the real link the audience voted for that day and redirect to that.

…Programatically

Well we need for the public to be able to vote so … website.

I pulled out a React project (Typescript of course) with a Material UI theme which is the go to for not having to muck around in CSS and getting something that looks good out of the box. Briony actually ended up wanting something very early internet and minimalistic so most of the Material UI elements were scrapped in favour of default theming which was an unusual experience working back the way to make something less styled.

The website pulls a list of the current votes from today’s date and allows the users to vote for one of the items or submit their own link.

Backend

I used AWS for pretty much everything in this project from Route 53 for domain management, Amplify for hosting the front end and API Gateway, Lambdas, DynamoDB etc for the API’s.

This was done to make the project easily scalable and proved very useful as the website started to get good and not so good attention. They also have a very generous free tier which most of our services have kept under so far, and using things like Lambda allows big cost savings for smaller projects compared to running machines 24/7.

The entry point for all requests is an API Gateway REST API which allows integration with downstream Lambda functions, as well as having useful in-built features like Rate Limiting which was turned on very quickly during the project.

The Lambdas are split by endpoint functionality

• Getting and updating votes
• Tracking user ids to ensure no spam votes
• History endpoints to aggregate votes from all previous days
• Email sending and verification

Each lambda typically has an associated database it talks to (or several in some cases like vote validation). I chose DynamoDB simply because it’s less hassle to work with than SQL databases, especially when the models might evolve throughout the development lifecycle.

The access patterns for the votes proved to be an interesting challenge.

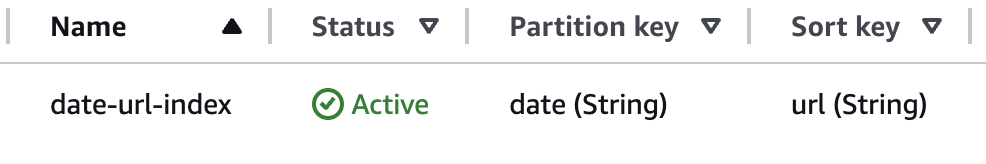

I ended up having a single votes table with a date-url index for querying by a particular date (e.g. getting a list of today’s votes)

Date_Url_Index

as well as being able to get any item directly by knowing the url and date.

Limiting Spam

So far, so good, right?

As the site started to get more popular, we gathered some attention from certain internet groups that would put in some amount of effort in ensuring their vote won and getting around one vote per person policies. (if you want to see what this leads to check out the voting history in March and bring eye scrub).

The initial protections of the website were admittedly naive as I assumed this to be a project that mostly reaches local friends & co and assumed goodwill. Initial implementation stored a userId cookie in the browser and only allowed each browser on a device to vote once per day. There are a million ways to get around this but it worked for the average user who didn’t care about breaking the website.

Once we saw people starting to figure out they can use a private tab or different browsers to get around this, I added another layer of protection attaching an address and User Agent of each vote. This meant you couldn’t spam by opening and closing private tabs anymore, and total votes per ip address could be limited to a sensible number. Not perfect but this stops the general public from getting easy votes in.

Then came the script kiddies. A User-Agent header can be easily faked with a script and changing ip address is trivial if you’re using remote machines or a mobile network. This started to become a bit of a challenge as we didn’t want to have user’s signing up or entering their details into the website. I added a Captcha (AWS coming in handy again) which at least should stop low level python request scripts. Still possible to automate and get around but browser automation is more of a pain - I was doubtful anyone would spend that much effort just to vote for something silly on a website. Right?

You’ve guessed the theme of this section already. At this point I didn’t see how we could keep the voting completely anonymous if people were willing to put in the effort of automating browser actions and solving captchas just to make their vote win. A proof of work algorithm was considered which was an interesting way to keep things anonymous and interaction free for the real users but given the amount of effort already put by people to break the website this seemed like another delay rather than a solution for good. Phone verification seemed nice but turned out to be rather expensive so email verification seemed to be the way forward.

The amount of effort in scripting a way to get past this has finally seemed to even out the playing field. By accepting well known email providers only we ensure the sign up process for fake addresses is lengthly and manual as well as stopping tricks like adding . to email addresses to make the same email appear as different strings.

This has been a reminder for any public facing application - Trust but Verify.
